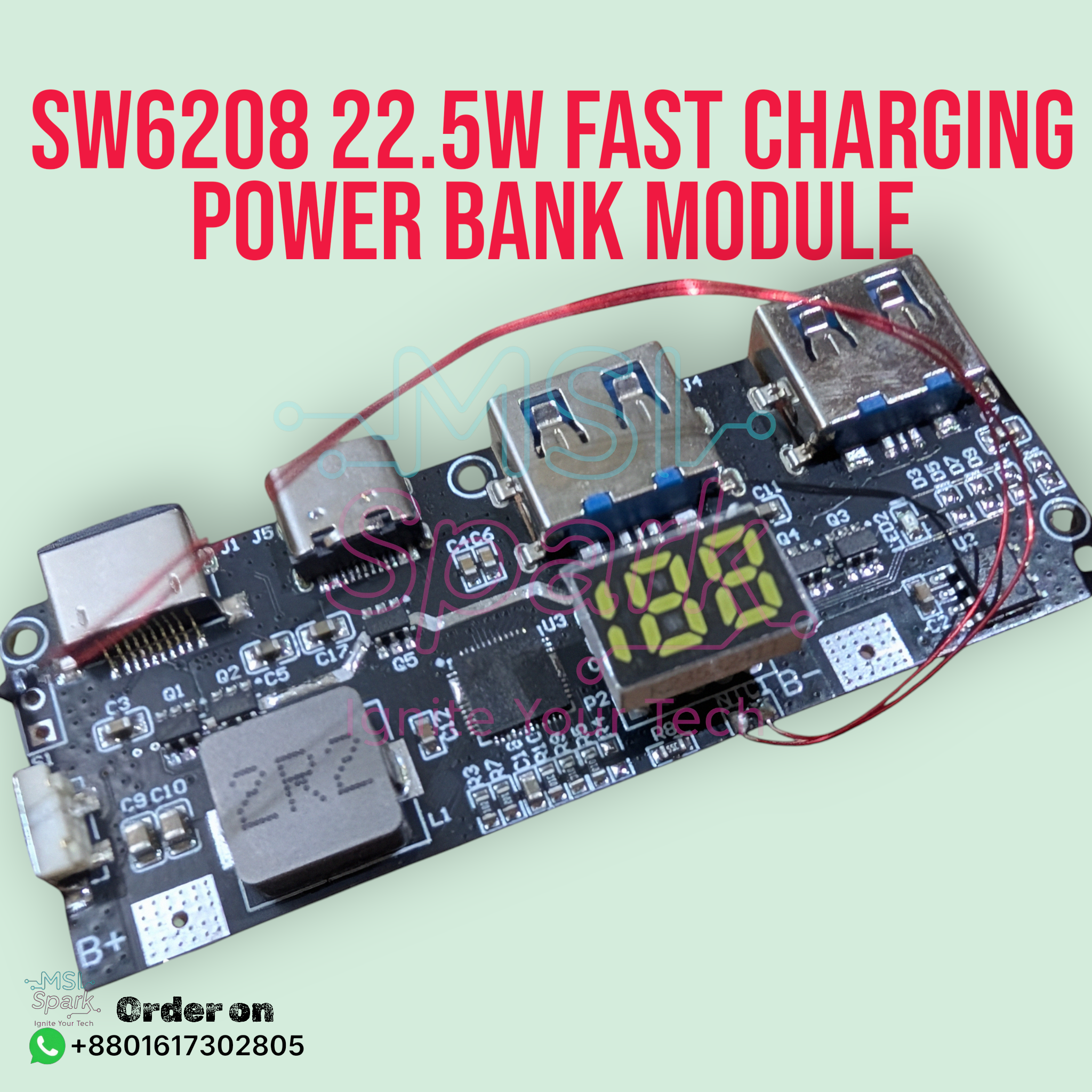

SW6208 LED Display QC4.0 QC3.0 LED Dual USB 5V 4.5A 22.5W Micro/Type-C USB Power Bank Module with Temperature Protection

Description

AFC/FCP/SCP/PE1.1 fast charging input;
It integrates /PD3.0/PD2.0 fast charging protocol and supports input and output bidirectional fast charging.
output supports 5-5.9V@3A, 5-11V@2A
PD3.0/PD2.0 output supports 5V@3A, 9V@2A, 12V@1.5A.
The input supports 5V/9V/12V voltage.
Integrated QC fast charging protocol, supports QC4+/QC4/QC3.0/QC2.0, supports Class A.
QC2.0 supports 5V/9V/12V output voltage.
QC3.0 supports 5V-12V output voltage, 200mV/Step.
Integrated AFC fast charging protocol, output supports 5V/9V/12V. The input supports 5V/9V voltage.
Integrated FCP fast charging protocol, output supports 5V/9V/12V. The input supports 5V/9V voltage.
Integrated SCP fast charging protocol, output supports 5V@4.5A. Input supports 5.5V@3A
Integrated with PE2.0 and PE1.1 fast charging protocols, PE2.0 supports 5V~12V output voltage 500mV/Step. PE1.1 supports 5V/7V/9V/12V output voltage. The input supports 5V/9V voltage.
Integrated SFCP fast charging protocol, supports 5V/9V/12V output voltage.
Integrated VooC fast charging protocol, output supports 5V@4A.
display: A-Digital tube LED display
note: Depending on the batch, the appearance/color/batch number of components may be different, which does not affect use.
IC Model: SW6208
Material: PCB+components
colour: Black

Package Contents:
1 x Mobile Power Bank 18650 Charging Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
