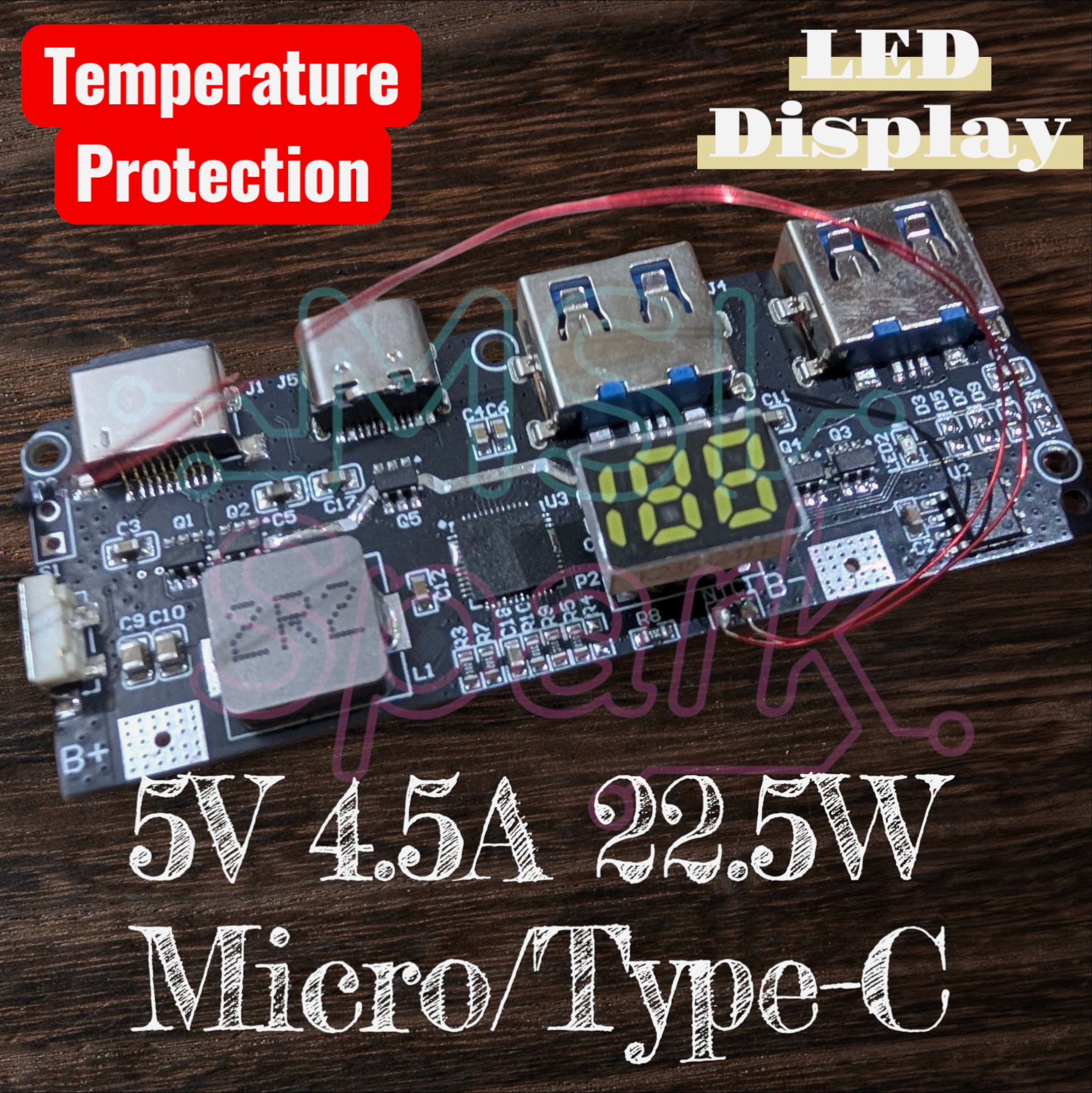

SW6208 Fast Charging Power Bank Module (22.5W)
Overview:
Power bank charging module based on the SW6208 controller, featuring LED digital display, dual USB output, and support for multiple fast-charging protocols. Designed for 18650 battery DIY power banks, with temperature protection and simultaneous charging and discharging.
Fast Charging Support:
PD2.0 / PD3.0 bidirectional fast charging
QC4+ / QC4 / QC3.0 / QC2.0 (Class A)
AFC / FCP / SCP / PE1.1 / PE2.0 / SFCP / VOOC
Power Input:
Micro-USB: QC2.0 / AFC / FCP / SCP / PE1.1
Type-C: PD fast-charging input
Input voltage: 5V / 9V / 12V
Default fast-charge input: 9V, up to 21W
Power Output:
Maximum output power: 22.5W
PD output: 5V @ 3A, 9V @ 2A, 12V @ 1.5A
QC output: 5V / 9V / 12V
SCP: 5V @ 4.5A
VOOC: 5V @ 4A
Adjustable output:
5–5.9V @ 3A
5–11V @ 2A
Port Behavior:
Supports simultaneous charge and discharge
Single port: fast charging input & output
Multiple ports: 5V output
Supports simultaneous output from USB-A1 / USB-A2 / Type-C
Display & Protection:
Digital LED display (voltage / status)
Built-in temperature protection
Specifications:
IC Model: SW6208
Material: PCB + electronic components
Color: Black
Package Contents:
1 × SW6208 Power Bank Charging Module
Notes:
Component appearance may vary by batch without affecting functionality
Batteries and other accessories are not included
Color may vary slightly due to lighting and display differences
Measurement tolerance: ±1–3 cm
