Specifications
Microcontroller: ATmega328P (SMD – ATmega328P-MU)
USB-to-Serial Converter: CH340G or ATmega16U2
Operating Voltage: 5V
Recommended Input Voltage: 7V – 12V
Input Voltage Limits: 6V – 20V
Digital I/O Pins: 14 (6 with PWM capability)
PWM Pins: 3, 5, 6, 9, 10, 11
Analog Input Pins: 6 (A0–A5)
DC Current per I/O Pin: 20 mA
DC Current on 3.3V Pin: 50 mA
Flash Memory: 32 KB (0.5 KB used by bootloader)
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz
USB Connector: USB Type-B or Micro USB (depending on version)
Communication Interfaces: UART, SPI, I²C
Dimensions: 68.6 mm × 53.4 mm
Weight: ~25 g
Operating Temperature: −40°C to +85°C
Out of stock
Key Features:

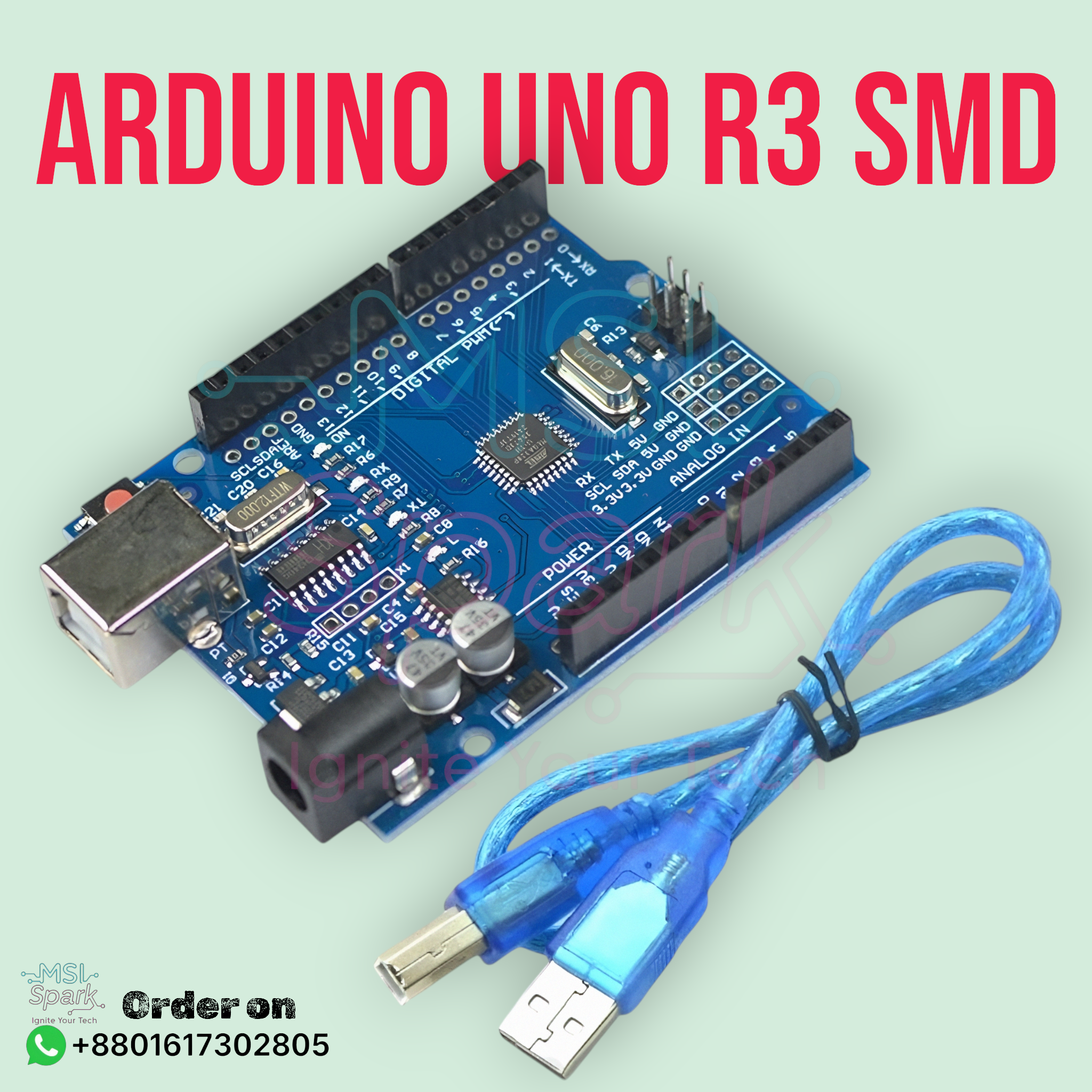

• Powered by the ATmega328P SMD microcontroller
• USB-to-Serial communication via CH340G or ATmega16U2
• Fully compatible with the Arduino IDE, libraries, and examples
• Standard Arduino Uno form factor and pin layout
• Cost-effective alternative to the original Arduino Uno
• Widely used in education, IoT projects, robotics, and automation
